Slurm agent

This guide provides a comprehensive overview of setting up an environment to test the Slurm agent locally and enabling the agent in your Flyte deployment. Before proceeding, the first and foremost step is to spin up your own Slurm cluster, as it serves as the foundation for the setup.

Spin up a Slurm cluster

Setting up a Slurm cluster can be challenging due to the limited detail in the official instructions. This tutorial simplifies the process, focusing on configuring a single-host Slurm cluster with slurmctld (central management daemon) and slurmd (compute node daemon).

Install MUNGE

MUNGE is an authentication service, allowing a process to authenticate the UID and GID of another local or remote process within a group of hosts having common users and groups.

1. Install necessary packages

sudo apt install munge libmunge2 libmunge-dev

2. Generate and verify a MUNGE credential

munge -n | unmunge | grep STATUS

A status of STATUS: Success(0) is expected and the MUNGE key is stored at /etc/munge/munge.key. If the key is absent, run the following:

sudo /usr/sbin/create-munge-key

3. Change ownership and permissions of MUNGE directories



sudo chown -R munge: /etc/munge/ /var/log/munge/ /var/lib/munge/ /run/munge/
sudo chmod 0700 /etc/munge/ /var/log/munge/ /var/lib/munge/
sudo chmod 0755 /run/munge/
sudo chmod 0700 /etc/munge/munge.key
sudo chown -R munge: /etc/munge/munge.key

4. Start MUNGE


sudo systemctl enable munge
sudo systemctl restart munge

Check the status with systemctl status munge or inspect the log at /var/log/munge.

Create a dedicated Slurm user

The SlurmUser must be created as needed prior to starting Slurm and must exist on all nodes in your cluster.

sudo adduser --system --uid <uid> --group --home /var/lib/slurm slurm

A system user usually has a uid in the range of 0-999. Refer to Add a system user.

cat /etc/passwd | grep <uid>


sudo mkdir -p /var/spool/slurmctld /var/spool/slurmd /var/log/slurm
sudo chown -R slurm: /var/spool/slurmctld /var/spool/slurmd /var/log/slurm

Run the Slurm cluster

1. Install Slurm packages


mkdir <your-clean-dir> && cd <your-clean-dir>
wget https://download.schedmd.com/slurm/slurm-24.05.5.tar.bz2



sudo apt-get update
sudo apt-get install -y build-essential fakeroot devscripts equivs
sudo apt install -y \
  libncurses-dev libgtk2.0-dev libpam0g-dev libperl-dev liblua5.3-dev \
  libhwloc-dev dh-exec librrd-dev libipmimonitoring-dev hdf5-helpers \
  libfreeipmi-dev libhdf5-dev man2html-base libcurl4-openssl-dev \
  libpmix-dev libhttp-parser-dev libyaml-dev libjson-c-dev \
  libjwt-dev liblz4-dev libmariadb-dev libdbus-1-dev librdkafka-dev

tar -xaf slurm-24.05.5.tar.bz2
cd slurm-24.05.5

sudo sed -i 's/^Types: deb$/Types: deb deb-src/' /etc/apt/sources.list.d/ubuntu.sources
sudo apt update
sudo mk-build-deps -i debian/control
debuild -b -uc -us

Install the packages:



cd ..
sudo dpkg -i slurm-smd_24.05.5-1_amd64.deb
sudo dpkg -i slurm-smd-client_24.05.5-1_amd64.deb
sudo dpkg -i slurm-smd-slurmctld_24.05.5-1_amd64.deb
sudo dpkg -i slurm-smd-slurmd_24.05.5-1_amd64.deb

2. Generate a Slurm configuration file

Generate slurm.conf using the official configurator.

Example:



ClusterName=localcluster
SlurmctldHost=localhost
ProctrackType=proctrack/linuxproc
SlurmctldLogFile=/var/log/slurm/slurmctld.log
SlurmdLogFile=/var/log/slurm/slurmd.log
NodeName=localhost CPUs=<cpus> RealMemory=<available-mem> Sockets=<sockets> CoresPerSocket=<cores-per-socket> ThreadsPerCore=<threads-per-core> State=UNKNOWN
PartitionName=debug Nodes=ALL Default=YES MaxTime=INFINITE State=UP

For GPU support, edit /etc/slurm/slurm.conf and /etc/slurm/gres.conf:



# slurm.conf
GresTypes=gpu
NodeName=localhost Gres=gpu:1 CPUs=<cpus> RealMemory=<available-mem> ...
PartitionName=debug Nodes=ALL Default=YES MaxTime=INFINITE State=UP

# gres.conf
AutoDetect=nvml
NodeName=localhost Name=gpu Type=tesla File=/dev/nvidia0

3. Start daemons



sudo systemctl enable slurmctld
sudo systemctl restart slurmctld
sudo systemctl enable slurmd
sudo systemctl restart slurmd

4. Try some Slurm commands


sinfo
srun -N 1 hostname

If the state is drain, run:

scontrol update nodename=<your-nodename> state=idle

Test your Slurm agent locally

This section describes how to test the Slurm agent locally without running the backend gRPC server.

Overview

The Slurm agent has 3 core methods:

create: Run srun or sbatch
get: Query job status using scontrol
delete: Cancel job using scancel

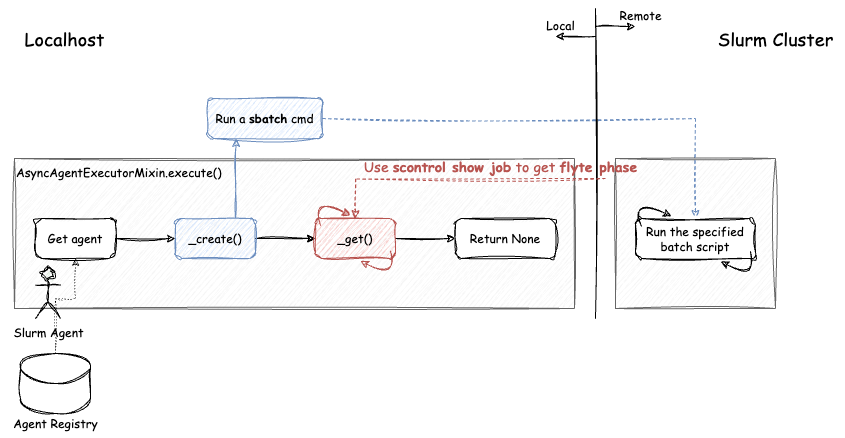

Basic architecture

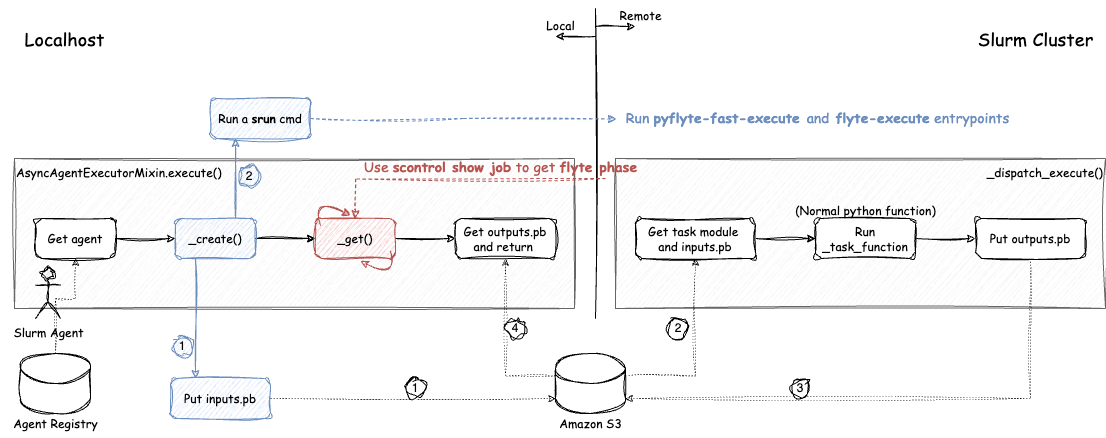

For Python function tasks:

Function task

Set up a local test environment

You need: a client (localhost), a Slurm cluster, and S3-compatible object storage.

1. Install the Slurm agent on your local machine

pip install flytekitplugins-slurm

2. Install the Slurm agent on the cluster

pip install flytekitplugins-slurm

3. Set up SSH configuration


ssh-keygen -t rsa -b 4096
ssh-copy-id <username>@<fqdn-or-ip>

~/.ssh/config:



Host <host-alias>
  HostName <fqdn-or-ip>
  Port <ssh-port>
  User <username>
  IdentityFile <path-to-private-key>

Sanity check:

ssh <host-alias>

4. Set up Amazon S3 bucket

Configure AWS credentials on both client and server.

~/.aws/config:


[default]
region = <your-region>

~/.aws/credentials:



[default]
aws_access_key_id = <aws-access-key-id>
aws_secret_access_key = <aws-secret-access-key>

On EC2, assign an IAM role with S3 permissions.

Check access:

aws s3 ls

Specify agent configuration

Flyte binary

Demo cluster

kubectl edit configmap flyte-sandbox-config -n flyte



tasks:
  task-plugins:
    default-for-task-types:
      container: container
      container_array: k8s-array
      sidecar: sidecar
      slurm_fn: agent-service
      slurm: agent-service
    enabled-plugins:
      - container
      - sidecar
      - k8s-array
      - agent-service

Helm chart



tasks:
  task-plugins:
    enabled-plugins:
      - container
      - sidecar
      - k8s-array
      - agent-service
    default-for-task-types:
      - container: container
      - container_array: k8s-array
      - slurm_fn: agent-service
      - slurm: agent-service

Flyte core

values-override.yaml:



enabled_plugins:
  tasks:
    task-plugins:
      enabled-plugins:
        - container
        - sidecar
        - k8s-array
        - agent-service
      default-for-task-types:
        container: container
        sidecar: sidecar
        container_array: k8s-array
        slurm_fn: agent-service
        slurm: agent-service

Add the Slurm Private Key

1. Install flyteagent pod


helm repo add flyteorg https://flyteorg.github.io/flyte
helm install flyteagent flyteorg/flyteagent --namespace flyte

2. Set Private Key as a Secret


SECRET_VALUE=$(base64 < your_slurm_private_key_path) && \
kubectl patch secret flyteagent -n flyte --patch "{\"data\":{\"flyte_slurm_private_key\":\"$SECRET_VALUE\"}}"

3. Restart development

kubectl rollout restart deployment flyteagent -n flyte
