Configuring Access to GPUs

Along with compute resources like CPU and memory, you may want to configure and access GPU resources.

This section describes the different ways Flyte provides to request accelerator resources directly from the task decorator.

Requesting a GPU with no device preference

The goal in this example is to run the task on a single available GPU :



from flytekit import ImageSpec, Resources, task

image = ImageSpec(
    base_image= "ghcr.io/flyteorg/flytekit:py3.10-1.10.2",
     name="pytorch",
     python_version="3.10",
     packages=["torch"],
     builder="default",
     registry="<YOUR_CONTAINER_REGISTRY>",
 )

@task(requests=Resources(gpu="1"))
def gpu_available() -> bool:
   return torch.cuda.is_available() # returns True if CUDA (provided by a GPU) is available

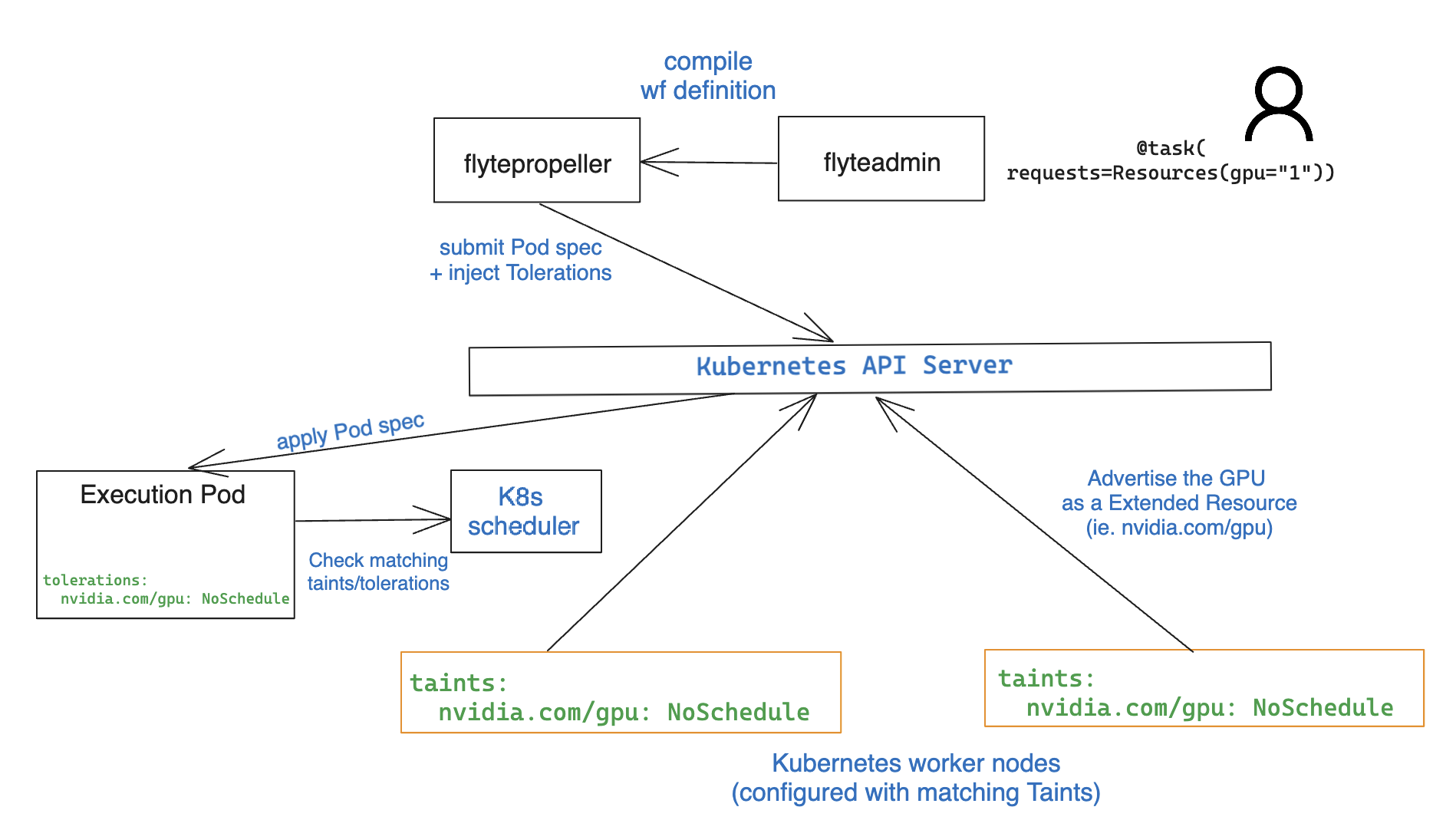

How it works

When this task is evaluated, flytepropeller injects a toleration in the pod spec:

tolerations:    nvidia.com/gpu:NoSchedule op=Exists

The Kubernetes scheduler will admit the pod if there are worker nodes in the cluster with a matching taint and available resources.

The resource nvidia.com/gpu key name is not arbitrary though. It corresponds to the Extended Resource that the Kubernetes worker nodes advertise to the API server through the device plugin. Using the information provided by the device plugin, the Kubernetes scheduler allocates an available accelerator to the Pod.

NVIDIA maintains a GPU operator that automates the management of all software prerequisites on Kubernetes, including the device plugin.

flytekit assumes by default that nvidia.com/gpu is the resource name for your GPUs. If your GPU accelerators expose a different resource name, adjust the following key in the Helm values file:

flyte-core



configmap:
  k8s:
    plugins:
      k8s:
        gpu-resource-name: <YOUR_GPU_RESOURCE_NAME>

flyte-binary



configuration:
  inline:
    plugins:
      k8s:
        gpu-resource-name: <YOUR_GPU_RESOURCE_NAME>

If your infrastructure requires additional tolerations for the scheduling of GPU resources to succeed, adjust the following section in the Helm values file:

flyte-core



configmap:
  k8s:
    plugins:
      k8s:
        resource-tolerations:
        - nvidia.com/gpu:
          - key: "mykey"
            operator: "Equal"
            value: "myvalue"
            effect: "NoSchedule"

flyte-binary



configuration:
  inline:
    plugins:
      k8s:
        resource-tolerations:
        - nvidia.com/gpu:
          - key: "mykey"
            operator: "Equal"
            value: "myvalue"
            effect: "NoSchedule"

For the above configuration, your worker nodes should have a mykey=myvalue:NoSchedule configured taint.

Requesting a specific GPU device

The goal is to run the task on a specific type of accelerator: NVIDIA Tesla V100 in the following example:



from flytekit import ImageSpec, Resources, task
from flytekit.extras.accelerators import V100

image = ImageSpec(
    base_image= "ghcr.io/flyteorg/flytekit:py3.10-1.10.2",
     name="pytorch",
     python_version="3.10",
     packages=["torch"],
     builder="default",
     registry="<YOUR_CONTAINER_REGISTRY>",
 )

@task(
    requests=Resources(gpu="1"),
    accelerator=V100,  #NVIDIA Tesla V100
)
def gpu_available() -> bool:
   return torch.cuda.is_available()

How it works

When this task is evaluated, flytepropeller injects both a toleration and a nodeSelector for a more flexible scheduling configuration.

An example pod spec on GKE would include the following:



apiVersion: v1
kind: Pod
spec:
  affinity:
    nodeAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
        nodeSelectorTerms:
        - matchExpressions:
          - key: cloud.google.com/gke-accelerator
            operator: In
            values:
            - nvidia-tesla-v100
  containers:
  - resources:
      limits:
        nvidia.com/gpu: 1
  tolerations:
  - key: nvidia.com/gpu  # auto
    operator: Equal
    value: present
    effect: NoSchedule
  - key: cloud.google.com/gke-accelerator
    operator: Equal
    value: nvidia-tesla-v100
    effect: NoSchedule

Configuring the nodeSelector

The key that the injected node selector uses corresponds to an arbitrary label that your Kubernetes worker nodes should already have. In the above example it’s cloud.google.com/gke-accelerator but, depending on your cloud provider it could be any other value. You can inform Flyte about the labels your worker nodes use by adjusting the Helm values:

flyte-core



configmap:
  k8s:
    plugins:
      k8s:
        gpu-device-node-label: "cloud.google.com/gke-accelerator" #change to match your node's config

flyte-binary



configuration:
  inline:
    plugins:
      k8s:
       gpu-device-node-label: "cloud.google.com/gke-accelerator" #change to match your node's config

While the key is arbitrary, the value (nvidia-tesla-v100) is not. flytekit has a set of predefined constants and your node label has to use one of those values.

Requesting a GPU partition

flytekit supports Multi-Instance GPU partitioning on NVIDIA A100 devices for optimal resource utilization.

Example:



from flytekit import ImageSpec, Resources, task
from flytekit.extras.accelerators import A100

image = ImageSpec(
    base_image= "ghcr.io/flyteorg/flytekit:py3.10-1.10.2",
     name="pytorch",
     python_version="3.10",
     packages=["torch"],
     builder="default",
     registry="<YOUR_CONTAINER_REGISTRY>",
 )

@task(
    requests=Resources( gpu="1"),
    accelerator=A100.partition_2g_10gb,  # 2 compute instances with 10GB memory slice
)
def gpu_available() -> bool:
   return torch.cuda.is_available()

How it works

In this case, flytepropeller injects an additional node selector expression to the resulting pod spec, indicating the partition size:



spec:
  affinity:
    nodeAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
        nodeSelectorTerms:
        - matchExpressions:
          - key: nvidia.com/gpu.accelerator
            operator: In
            values:
            - nvidia-tesla-a100
          - key: nvidia.com/gpu.partition-size
            operator: In
            values:
            - 2g.10gb

Plus and additional toleration:



  tolerations:
  - effect: NoSchedule
    key: nvidia.com/gpu.accelerator
    operator: Equal
    value: nvidia-tesla-a100
  - effect: NoSchedule
    key: nvidia.com/gpu.partition-size
    operator: Equal
    value: 2g.10gb

In consequence, your Kubernetes worker nodes should have matching labels so the Kubernetes scheduler can admit the Pods:

Node labels (example):


nvidia.com/gpu.partition-size: "2g.10gb"
nvidia.com/gpu.accelerator: "nvidia-tesla-a100"

If you want to better control scheduling, configure your worker nodes with taints that match the tolerations injected to the pods.

In the example the nvidia.com/gpu.partition-size key is arbitrary and can be controlled from the Helm chart:

flyte-core



configmap:
  k8s:
    plugins:
      k8s:
        gpu-partition-size-node-label: "nvidia.com/gpu.partition-size" #change to match your node's config

flyte-binary



configuration:
  inline:
    plugins:
      k8s:
       gpu-partition-size-node-label: "nvidia.com/gpu.partition-size" #change to match your node's config

The 2g.10gb value comes from the NVIDIA A100 supported instance profiles and it’s controlled from the Task decorator (accelerator=A100.partition_2g_10gb in the above example). Depending on the profile requested in the Task, Flyte will inject the corresponding value for the node selector.

Learn more about the full list of flytekit supported partition profiles and task decorator options here.

Additional use cases

Request an A100 device with no preference for partition configuration

Example:



from flytekit import ImageSpec, Resources, task
from flytekit.extras.accelerators import A100

image = ImageSpec(
    base_image= "ghcr.io/flyteorg/flytekit:py3.10-1.10.2",
     name="pytorch",
     python_version="3.10",
     packages=["torch"],
     builder="default",
     registry="<YOUR_CONTAINER_REGISTRY>",
 )

@task(
    requests=Resources( gpu="1"),
    accelerator=A100,
)
def gpu_available() -> bool:
   return torch.cuda.is_available()

How it works?

flytekit uses a default 2g.10gbpartition size and flytepropeller injects the node selector that matches labels on nodes with an A100 device:



spec:
  affinity:
    nodeAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
        nodeSelectorTerms:
        - matchExpressions:
          - key: nvidia.com/gpu.accelerator
            operator: In
            values:
            - nvidia-tesla-a100

Request an unpartitioned A100 device

The goal is to run the task using the resources of the entire A100 GPU:



from flytekit import ImageSpec, Resources, task
from flytekit.extras.accelerators import A100

image = ImageSpec(
    base_image= "ghcr.io/flyteorg/flytekit:py3.10-1.10.2",
     name="pytorch",
     python_version="3.10",
     packages=["torch"],
     builder="default",
     registry="<YOUR_CONTAINER_REGISTRY>",
 )

@task(requests=Resources( gpu="1"),
              accelerator=A100.unpartitioned,
              ) # request the entire A100 device
def gpu_available() -> bool:
   return torch.cuda.is_available()

How it works

When this task is evaluated flytepropeller injects a node selector expression that only matches nodes where the label specifying a partition size is not present:



spec:
  affinity:
    nodeAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
        nodeSelectorTerms:
        - matchExpressions:
          - key: nvidia.com/gpu.accelerator
            operator: In
            values:
            - nvidia-tesla-a100
          - key: nvidia.com/gpu.partition-size
            operator: DoesNotExist

The expression can be controlled from the Helm values:

flyte-core



configmap:
  k8s:
    plugins:
      k8s:
        gpu-unpartitioned-node-selector-requirement :
          key: cloud.google.com/gke-gpu-partition-size #change to match your node label configuration
          operator: Equal
          value: DoesNotExist

flyte-binary



configuration:
  inline:
    plugins:
      k8s:
        gpu-unpartitioned-node-selector-requirement:
          key: cloud.google.com/gke-gpu-partition-size #change to match your node label configuration
          operator: Equal
          value: DoesNotExist

Scheduling can be further controlled by setting in the Helm chart a toleration that flytepropeller injects into the task pods:

flyte-core



configmap:
  k8s:
    plugins:
      k8s:
        gpu-unpartitioned-toleration:
          effect: NoSchedule
          key: cloud.google.com/gke-gpu-partition-size
          operator: Equal
          value: DoesNotExist

flyte-binary



configuration:
  inline:
    plugins:
      k8s:
        gpu-unpartitioned-toleration:
          effect: NoSchedule
          key: cloud.google.com/gke-gpu-partition-size
          operator: Equal
          value: DoesNotExist

In case your Kubernetes worker nodes are using taints, they need to match the above configuration.
